Premium Washers in Stainless Steel & Carbon Steel | Flat, Plain, Spring, Belleville, Lock, Square, Conical & Special Washers Available | Sizes: M3–M64 | ASTM F436, DIN 125, DIN 127, ISO 7089, 7090 Certified | ISO Approved Exporter.
We are a trusted manufacturer and supplier of high-quality washers, committed to delivering reliable fastening solutions worldwide. With advanced production technology and stringent quality control, our washers are designed to meet the diverse needs of industries including automotive, construction, manufacturing, and aerospace. Our customer-focused approach ensures timely delivery and customization options, making us a preferred partner for both large-scale projects and specialized applications.

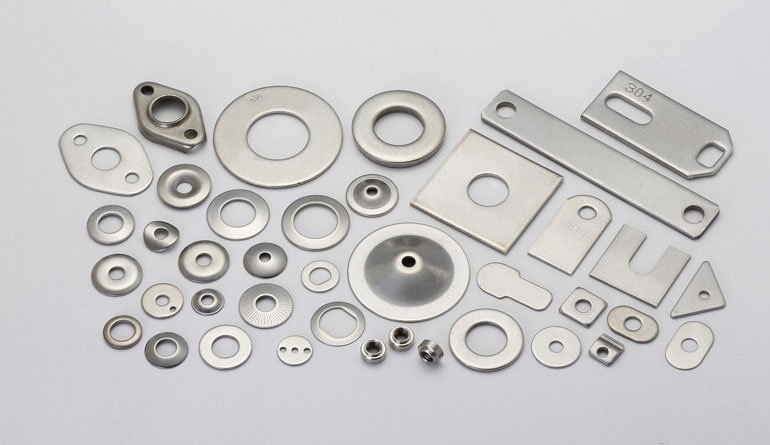

Our washers are manufactured using premium materials such as carbon steel, stainless steel (grades 304, 316), alloy steel, duplex and super duplex stainless steels, high nickel alloys, and titanium. Available in various types including flat washers, spring washers, lock washers, and flange washers, they conform to key international standards like ASTM F436, ASTM F844, ISO 7089, and DIN 125. The washers undergo rigorous testing for dimensional accuracy, hardness, tensile strength, and corrosion resistance to ensure optimum performance under different operating conditions.
The production of our washers involves precision stamping or machining from high-grade metal sheets, followed by heat treatment to enhance strength and durability. Surface finishing options such as zinc plating, galvanization, and passivation provide excellent resistance against corrosion and wear. Our washers meet stringent quality requirements per ASTM, ISO, and DIN standards, ensuring consistent compatibility and reliability with bolts, nuts, and other fasteners.
Washers play a critical role in distributing load, reducing vibration, preventing leakage, and protecting surfaces in assembly operations. Our washers are widely used in automotive engines, heavy machinery, construction equipment, marine vessels, and aerospace components. Depending on the type and material, they help improve joint stability, extend the lifespan of assemblies, and enhance overall safety in demanding industrial environments.
Top-Quality Stainless Steel Washers in 304, 316, and 316L with Carbon and Alloy Steel Grades – Metric & Inch Sizes Ranging M3 to M64. Offered with Hot-Dip Galvanized, Zinc Plated, PTFE, and Black Oxide Coatings for Maximum Durability.
Stainless Steel Washers Specifications
| Washer Size | M02 to M33, Custom Sizes |
|---|---|
| Washers Length | 3 mm to 200 mm |
| Washer | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Washers | DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 2016, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1 |
| Form of Washers | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Washer | Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Washers | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Washers | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Washers | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Washers Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Washers finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
| Stainless Steel Washers | AISI 302, 304, 304L,316, 316L, 310, 317, 317L, 321, 347, 410, 420,904L etc. |
| Alloy Steel Washers | ASTM / ASME A/SA 193 / 194 B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
| Carbon Steel Washers | ASTM A307, A193 |
| Duplex & Super Duplex Steel Washers | 2205, UNS S31803, UNS S32205, UNS S31550, 2507, UNS S32750, and UNS S32760 |
| Nickel Alloy Washers | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
Types of Fasteners
Heat-treated for enhanced tensile strength and superior load-bearing performance.
Stud Bolts
Designed with full or partial threading for secure fastening in critical applications.
Dimensions Chart of Flat Washer
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| #2 | 3/32″ | 1/4″ | .020″ |
| #4 | 1/8″ | 5/16″ | 1/32″ |
| #8 | 3/16″ | 7/16″ | 3/64″ |
| #10 | 7/32″ | 1/2″ | 3/64″ |
| #6 | 5/32″ | 3/8″ | 3/64″ |
| 1/4 | 9/32″ | 5/8″ | 1/16″ |
| 3/8 | 13/32″ | 13/16″ | 1/16″ |
| 7/16 | 15/32″ | 59/64″ | 1/16″ |
| 1/2 | 17/32″ | 1-1/16″ | 3/32″ |
| 9/16 | 19/32″ | 1-3/16″ | 3/32″ |
| 5/16 | 11/32″ | 11/16″ | 1/16″ |
| 1-3/4 | 1-7/8″ | 4″ | 3/16″ |
| 5/8 | 21/32″ | 1-5/16″ | 3/32″ |
| 3/4 | 13/16″ | 1-1/2″ | 9/64″ |
| 7/8 | 15/16″ | 1-3/4″ | 9/64″ |
| 1″ | 1-1/16″ | 2″ | 9/64″ |
| 1-1/8 | 1-3/16″ | 2-1/4″ | 9/64″ |
| 1-1/4 | 1-5/16″ | 2-1/2″ | 5/32″ |
| 1-1/2 | 1-7/16″ | 3″ | 3/16″ |
| 1-5/8 | 1-3/4″ | 3-3/4″ | 3/16″ |
| 2 | 2-1/8″ | 4-1/2″ | 3/16″ |
Plain Washer Dimension Chart
| Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| 3/16 | 1/4″ | 9/16″ | 3/64″ |
| 1/4 | 5/16″ | 3/4″ | 1/16″ |
| 3/8 | 7/16″ | 1″ | 5/64″ |
| 7/16 | 1/2″ | 1-1/4″ | 5/64″ |
| 1/2 | 9/16″ | 1-3/8″ | 7/64″ |
| 9/16 | 5/8″ | 1-1/2″ | 7/64″ |
| 5/8 | 11/16″ | 1-3/4″ | 9/64″ |
| 3/4 | 13/16″ | 2″ | 5/32″ |
| 5/16 | 3/8″ | 7/8″ | 5/64″ |
| 7/8 | 15/16″ | 2-1/4″ | 1/64″ |
| 1 | 1-1/16″ | 2-1/2″ | 11/64″ |
| 1-1/8 | 1-1/4″ | 2-3/4″ | 11/64″ |
| 1-1/4 | 1-3/8″ | 3″ | 11/64″ |
| 1-3/8 | 1-1/2″ | 3-1/4″ | 3/16″ |
| 1-5/8 | 1-3/4″ | 3-3/4″ | 3/16″ |
| 1-3/4 | 1-7/8″ | 4″ | 3/16″ |
| 2 | 2-1/8″ | 4-1/2″ | 3/16″ |
| 2-1/2 | 2-5/8″ | 4-1/2″ | 3/16″ |
| 3 | 3-1/8″ | 5-1/2″ | 9/32″ |
| 1-1/2 | 1-5/8″ | 3-1/2″ | 3/16″ |
ANSI and/or ASME Standards Washers (inch series)
| Description | Standard | Measurement System |
|---|---|---|
| Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Lock Washers | ANSI/ASME B18.21.1M | Metric |
| Plain Washers | ANSI/ASME B18.22.1 | Inch Series |
| Plain Washers | ANSI/ASME B18.22M | Metric |
| Heavy Helical Spring Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Extra Duty Helical Spring Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| High Collar Helical Spring Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Internal Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Heavy Internal Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| External Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Countersunk External Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Internal External Tooth Lock Washers | ANSI/ASME B18.21.1 | Inch Series |
| Tab Washers With Long Tab | DIN 93 | Metric |
| Plain Flat Washers | DIN 125A / ISO 7089 | Metric |
| Plain Flat Washers | DIN 125B / ISO 7090 | Metric |
| Plain Flat Washers Without Chamfer | DIN 126 | Metric |
| Spring Lock Washers, Form A | DIN 127A | Metric |
| Spring Lock Washers, Form B | DIN 127B | Metric |
| Curved Spring Lock Washers | DIN 128 A | Metric |
| Waved Spring Lock Washers | DIN 128 B | Metric |
| Tab Lock Washers With External Tab | DIN 432 | Metric |
| Square Taper Washers | DIN 434 | Metric |
| Square Bevel Washers | DIN 435 | Metric |
| Square Washers | DIN 436 | Metric |
| Large Plain Washers for Wood Construction | DIN 440 / ISO 7094 | Metric |
| Internal Tab Washers | DIN 462 | Metric |
| Tab Washers with Long Tab and Wing | DIN 463 | Metric |
| Flat Washers for Clevis Pins | DIN 1440 / ISO 8738 | Metric |
| Disc Spring Washers | DIN 2093 | Metric |
| Conical Spring Washers (Belleville Type) | DIN 6796 | Metric |
| Conical Spring Washers | ISO 10670 | Metric |
| Plain Flat Washers | ISO 7091 | Metric |
| Plain Washers for Cheese Head Screws | ISO 7092 | Metric |
| Large Plain Washers OD=3D | ISO 7093 | Metric |
| Round Machined Washers | IS 2016 | Metric |
| Round Punched Washers for Hexagonal Bolts | IS 2016 | Metric |
| Round Punched Washers for Cheese Head Screws | IS 2016 | Metric |
| Spring Lock Washers | IS 6735 | Metric |
Washers Weight Chart
| APPROX. WEIGHT IN KGS FOR 100 NOS | |||||||||||||
| SIZE | PLAIN PUNCHED WASHER IS:2016 |
HEAVY WASHER IS:6610 |
MACHINED WASHER IS:2016 |
SQUARE TAPER WASHERS | SPRING WASHER FLAT SECTION IS:3063-72 | SPRING WASHER SQUARE SECTION IS:6735-72 DIN : 7980 |
Size (Inches) | PLAIN PUNCHED WASHER BS:3410 TABLE 7 |
SPRING WASHER FLAT SECTION BS:1802-1951 | SPRING WASHER SQUARE SECTION BS:1802-1951 | |||
| MACHINED | HIGH STRENGTH FRICTION GRIP |
||||||||||||
| FOR CHANNELS IS:5372-75 |
FOR I-BEAM IS:5374-75 |
TYPE-B (CHANNELS) IS : 6649-85 |
TYPE-C ( I-BEAMS ) IS : 6649-85 |
||||||||||
| M-3 | 0.01 | 0.01 | |||||||||||
| M-4 | 0.02 | 0.02 | |||||||||||
| M-5 | 0.04 | 0.04 | 0.03 | 0.03 | |||||||||
| M-6 | 0.11 | 0.11 | 0.08 | 0.04 | 1/4″ | 0.21 | |||||||
| M-8 | 0.20 | 0.21 | 1.10 | 1.20 | 0.16 | 0.11 | 5/16″ | 0.35 | |||||
| M-10 | 0.39 | 1.60 | 0.40 | 1.00 | 1.10 | 0.25 | 0.20 | 3/8″ | 0.48 | ||||
| M-12 | 0.58 | 1.90 | 0.62 | 2.00 | 2.20 | 2.00 | 1.80 | 0.38 | 0.23 | 1/2″ | 1.07 | ||
| M-14 | 0.82 | 0.60 | 0.38 | ||||||||||
| M-16 | 1.06 | 2.90 | 1.13 | 3.40 | 3.75 | 9.00 | 8.50 | 0.89 | 0.59 | 5/8″ | 1.85 | ||
| M-18 | 1.27 | 0.97 | 0.66 | ||||||||||
| M-20 | 1.64 | 4.40 | 1.72 | 5.80 | 6.70 | 8.50 | 8.00 | 1.52 | 1.23 | 3/4″ | 2.91 | ||
| M-22 | 1.75 | 7.50 | 7.00 | 1.65 | 1.36 | 7/8″ | 4.27 | ||||||
| M-24 | 3.11 | 6.30 | 3.30 | 13.50 | 16.00 | 6.50 | 6.00 | 2.62 | 1.81 | 1″ | 6.13 | ||
| M-27 | 3.94 | 8.00 | 4.23 | 12.50 | 15.00 | 12.00 | 11.50 | 2.87 | 2.06 | 1.1/8″ | 7.69 | ||
| M-30 | 5.05 | 10.10 | 5.36 | 16.50 | 18.70 | 17.50 | 16.00 | 4.43 | 3.20 | 1.1/4″ | 9.90 | ||
| M-33 | 7.10 | 12.00 | 7.54 | 21.00 | 23.50 | 23.00 | 22.50 | 6.30 | 3.50 | ||||
| M-36 | 8.73 | 14.60 | 9.20 | 25.50 | 29.20 | 26.50 | 26.00 | 6.73 | 5.25 | 1.1/2″ | 17.24 | ||
| M-39 | 12.60 | 16.70 | 13.30 | 28.30 | 34.50 | 7.17 | 5.61 | ||||||
| M-42 | 17.50 | 20.10 | 18.30 | 11.10 | 8.00 | ||||||||
| M-45 | 21.20 | 22.20 | 22.00 | 11.70 | 8.53 | ||||||||
| M-48 | 28.40 | 26.00 | 29.40 | 12.30 | 9.00 | 2″ | 27.78 | ||||||
| M-52 | 31.90 | 33.00 | 18.20 | ||||||||||
| M-56 | 47.90 | 19.30 | |||||||||||
| M-60 | 51.60 | 20.30 | |||||||||||
| M-64 | 55.40 | 21.80 | |||||||||||
| M-68 | 57.40 | ||||||||||||
| M-72 | 63.40 | 24.00 | |||||||||||
Worldwide Supply of Flat Washers
