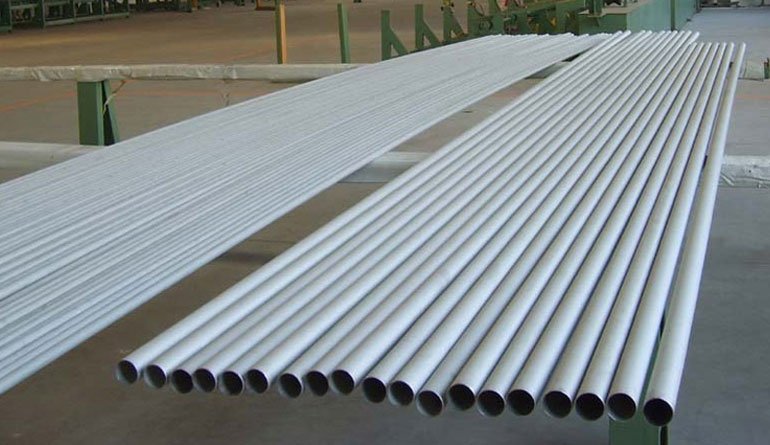

Duplex & Super Duplex Pipes & Tubes – ISO 9001:2015 Certified, Offered in Seamless, ERW, Welded, Square, Rectangular and EFW Types, Custom Sizes and Thicknesses – Fully Certified with NACE, IBR, and Third-Party Inspection Documentation.
We specialize in manufacturing premium duplex and super duplex stainless steel pipes and tubes, serving industries that demand exceptional corrosion resistance and high mechanical strength. Our production facilities are ISO certified, ensuring adherence to the highest quality standards. Equipped with advanced technology and stringent quality control, we deliver pipes and tubes that consistently meet international specifications and customer expectations, making us a trusted supplier worldwide.
Our duplex and super duplex pipes and tubes are produced using stainless steels with a balanced austenitic-ferritic microstructure, providing superior resistance to pitting, crevice corrosion, and stress corrosion cracking. We supply standard grades such as ASTM A789, A790 Duplex (Grade 2205) and Super Duplex (Grade 2507), compliant with ASTM and UNS specifications. The products are supplied in delivery conditions including annealed and solution-treated, ensuring optimal mechanical properties and corrosion resistance right from delivery.
Available in a wide range of sizes—from 1/2 inch to 48 inches diameter—with customizable wall thicknesses, our duplex and super duplex pipes and tubes undergo comprehensive testing including hydrostatic pressure tests, Positive Material Identification (PMI), and non-destructive examinations (NDT). Each order is carefully packed using industry-approved packing methods—such as wooden crates, steel straps, and waterproof wrapping—to ensure damage-free transit and safe delivery to customers globally.
Duplex and super duplex stainless steel pipes and tubes are ideal for use in harsh environments such as oil and gas exploration, chemical processing, desalination, marine, and pulp & paper industries. Their high strength and corrosion resistance reduce maintenance and increase lifespan, enhancing operational safety and efficiency. We proudly supply these products to key international markets including Europe, Russia, Saudi Arabia, Oman, Qatar, and the USA, meeting the stringent demands of these regions with reliable quality and timely delivery.
Premium Duplex & Super Duplex Pipes & Tubes – ASTM A789 / A790 Certified – Available Grades Include S31803, 2205, 2304, 2507, S32750, and S32760 – OD from 6 mm to 114 mm and Wall Thickness up to 10 mm.
Duplex Steel Pipes & Tubes Specifications
| Specification | Details |
|---|---|
| Product Name | Duplex & Super Duplex Steel Pipes & Tubes |
| Grades | 2205, 2304, 2507, S31803, S32205, S32750, S32760 |
| Manufacturing Process | Seamless, Welded, ERW, EFW, Fabricated Pipes & Tubes |
| Sizes | ½” NB to 48″ NB (Standard and Custom Sizes Available) |
| Thickness | Schedule 5 to Schedule 160, XXS (Extra Extra Strong) |
| Surface Finish | Polished, Pickled, Annealed, Bright Annealed |
| Standards | ASTM A790, ASTM A789 |
| Length | Standard 6 meters, Custom Lengths Available |
| Forms | Round, Square, Rectangular, Hollow, Coiled, Straight Pipes & Tubes |
| Ends | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Testing & Certification | ISO 9001:2015, EN 10204/3.1B, NACE MR0175, Mill Test Report, Third Party Inspection |
Types of Duplex Steel Pipes & Tubes
Hot rolled and defect-free – Seamless Pipes & Tubes built for strength and longevity.
Strong, smooth, and reliable – Welded Pipes & Tubes for every industrial need.
Seamless look, welded strength — ERW Pipes & Tubes built to perform.
Tubing is the backbone of modern construction and manufacturing
Oval pipes offer a unique shape ideal for modern design and efficient flow systems.
Square and rectangular pipes are essential in construction, fabrication, and structural design.
Their versatility and durability make them a go-to choice for frames, supports, and structural components.
Their small diameter allows accurate flow regulation and heat exchange efficiency.
Equivalent of Super Duplex Steel Pipes
| ASTM Grade | UNS | DIN (Germany) | EN (Europe) | JIS (Japan) | BS (UK) |
|---|---|---|---|---|---|
| ASTM A790 Gr. UNS S31803 | S31803 | 1.4462 | X2CrNiMoN22-5-3 | SUS 329J3L | EN 1.4462 |
| ASTM A790 Gr. UNS S32205 (2205) | S32205 | 1.4462 | X2CrNiMoN22-5-3 | SUS 329J3L | EN 1.4462 |
| ASTM A789 Gr. UNS S32750 (2507) | S32750 | 1.4410 | X2CrNiMoCuN25-7-4 | SUS 327J4L | EN 1.4410 |
| ASTM A789 Gr. UNS S32760 | S32760 | 1.4501 | X2CrNiMoCuWN25-7-4-3 | SUS 327J4L | EN 1.4501 |
| Duplex 2205 | S32205 | 1.4462 | X2CrNiMoN22-5-3 | SUS 329J3L | EN 1.4462 |
| Super Duplex 2507 | S32750 | 1.4410 | X2CrNiMoCuN25-7-4 | SUS 327J4L | EN 1.4410 |
Chemical Composition of Duplex Steel Tubing
| Grade | C (Max) | Mn (Max) | Si (Max) | P (Max) | S (Max) | Cr | Ni | Mo | N (Min) | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| Duplex 2205 (S31803 / S32205) | 0.03 | 2.00 | 0.80 | 0.035 | 0.020 | 21.0 – 23.0 | 4.5 – 6.5 | 2.5 – 3.5 | 0.08 – 0.20 | N: 0.14 – 0.20 |
| Super Duplex 2507 (S32750) | 0.03 | 2.00 | 1.00 | 0.035 | 0.020 | 24.0 – 26.0 | 6.0 – 8.0 | 3.0 – 5.0 | 0.10 – 0.22 | Cu: 0.50 max, N: 0.24 – 0.32 |
| Super Duplex S32760 | 0.03 | 2.00 | 1.00 | 0.030 | 0.020 | 24.0 – 26.0 | 6.0 – 8.0 | 3.0 – 5.0 | 0.10 – 0.22 | W: 0.7-1.5, N: 0.14 – 0.22 |
| Duplex 2304 | 0.03 | 2.00 | 1.00 | 0.040 | 0.020 | 22.0 – 24.0 | 3.5 – 5.5 | 0.50 – 1.00 | 0.03 – 0.15 | – |
Mechanical Properties of Super Duplex Seamless Pipes
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness (HB) | Impact Strength (J) |
|---|---|---|---|---|---|
| Duplex 2205 (S31803 / S32205) | 450 – 550 | 620 – 800 | 25 – 35 | ≤ 290 | 60 – 100 |
| Super Duplex 2507 (S32750) | 550 – 750 | 750 – 950 | 25 – 30 | ≤ 320 | 50 – 90 |
| Super Duplex S32760 | 600 – 750 | 750 – 950 | 25 – 30 | ≤ 320 | 50 – 90 |
| Duplex 2304 | 350 – 450 | 620 – 770 | 25 – 35 | ≤ 280 | 60 – 100 |
Dimension Chart of Duplex Pipes & Tubes
| Pipe Size (in) |
Diameter (in) MM |
Nominal Thickness (in) MM |
Transverse Areas (in2) MM2 |
Length of Pipe (ft per sq. foot of surface) |
Volume (ft3/ft) |
Weight | Number of Threads per inch of Screw | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | Internal | External | Internal | Steel | External Surface (ft) |
Internal Surface (ft) |
(lb/ft) | (kg/m) | ||||
| 1/8 | 0.405 | 0.27 | 0.07 | 0.13 | 0.06 | 0.07 | 9.43 | 14.20 | 0.0004 | 0.24 | 0.36 | 27 |
| ¼ | 0.540 | 0.36 | 0.09 | 0.23 | 0.10 | 0.13 | 7.07 | 10.49 | 0.0007 | 0.42 | 0.63 | 18 |
| 3/8 | 0.675 | 0.49 | 0.09 | 0.36 | 0.19 | 0.17 | 5.66 | 7.75 | 0.0013 | 0.57 | 0.84 | 18 |
| ½ | 0.840 | 0.62 | 0.11 | 0.55 | 0.30 | 0.25 | 4.55 | 6.14 | 0.0021 | 0.85 | 1.26 | 14 |
| ¾ | 1.050 | 0.82 | 0.11 | 0.87 | 0.53 | 0.33 | 3.64 | 4.64 | 0.0037 | 1.13 | 1.68 | 14 |
| 1 | 1.315 | 1.05 | 0.13 | 1.36 | 0.86 | 0.49 | 2.90 | 3.64 | 0.0060 | 1.68 | 2.50 | 11 ½ |
| 1 ¼ | 1.660 | 1.38 | 0.14 | 2.16 | 1.50 | 0.67 | 2.30 | 2.77 | 0.0104 | 2.27 | 3.38 | 11 ½ |
| 1 ½ | 1.900 | 1.61 | 0.15 | 2.84 | 2.04 | 0.80 | 2.01 | 2.37 | 0.0141 | 2.72 | 4.04 | 11 ½ |
| 2 | 2.375 | 2.07 | 0.15 | 4.43 | 3.36 | 1.08 | 1.61 | 1.85 | 0.0233 | 3.65 | 5.43 | 11 ½ |
| 2 ½ | 2.875 | 2.47 | 0.20 | 6.49 | 4.79 | 1.70 | 1.33 | 1.55 | 0.0333 | 5.79 | 8.62 | 8 |
| 3 | 3.500 | 3.07 | 0.22 | 9.62 | 7.39 | 2.23 | 1.09 | 1.25 | 0.0513 | 7.58 | 11.27 | 8 |
| 3 ½ | 4.000 | 3.55 | 0.23 | 12.56 | 9.89 | 2.68 | 0.95 | 1.08 | 0.0687 | 9.11 | 13.56 | 8 |
| 4 | 4.500 | 4.03 | 0.24 | 15.90 | 12.73 | 3.17 | 0.85 | 0.95 | 0.0884 | 10.79 | 16.06 | 8 |
| 5 | 5.563 | 5.05 | 0.26 | 24.30 | 20.00 | 4.30 | 0.69 | 0.76 | 0.1389 | 14.61 | 21.74 | 8 |
| 6 | 6.625 | 6.07 | 0.28 | 34.47 | 28.89 | 5.58 | 0.58 | 0.63 | 0.2006 | 18.97 | 28.23 | 8 |
| 8 | 8.625 | 7.98 | 0.32 | 58.42 | 50.02 | 8.40 | 0.44 | 0.48 | 0.3552 | 28.55 | 42.49 | 8 |
| 10 | 10.750 | 10.02 | 0.37 | 90.76 | 78.85 | 11.90 | 0.36 | 0.38 | 0.5476 | 40.48 | 60.24 | 8 |
| 12 | 12.750 | 11.94 | 0.41 | 127.64 | 111.90 | 15.74 | 0.30 | 0.32 | 0.7763 | 53.60 | 79.77 | 8 |
| 14 | 14.000 | 13.13 | 0.44 | 153.94 | 135.30 | 18.64 | 0.27 | 0.28 | 0.9354 | 63.00 | 93.75 | 8 |
| 16 | 16.000 | 15.00 | 0.50 | 201.05 | 176.70 | 24.35 | 0.24 | 0.25 | 1.2230 | 78.00 | 116.08 | 8 |
| 18 | 18.000 | 16.88 | 0.56 | 254.85 | 224.00 | 30.85 | 0.21 | 0.23 | 1.5550 | 105.00 | 156.26 | 8 |
| 20 | 20.000 | 18.81 | 0.59 | 314.15 | 278.00 | 36.15 | 0.19 | 0.20 | 1.9260 | 123.00 | 183.05 | 8 |
| 24 | 24.000 | 22.63 | 0.69 | 452.40 | 402.10 | 50.30 | 0.16 | 0.17 | 2.7930 | 171.00 | 254.48 | 8 |
Super Duplex Pipes & Tubes Weight Chart
| NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
| in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
| 1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
| 0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
| 3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
| 0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
| 1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
| 0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
| 1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
| 0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
| 1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
| 0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
| 2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
| 0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
| 2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
| 0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
| 3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
| 0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
| 4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
| 0.337 | 8.560 | 22.318 | 14.983 | ||||
| 6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
| 0.203 | 5.516 | 20.739 | 13.923 | ||||
| 0.219 | 5.563 | 22.318 | 14.983 | ||||
| 0.250 | 6.350 | 25.354 | 17.021 | ||||
| 0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
| 0.312 | 7.925 | 31.334 | 21.036 | ||||
| 0.375 | 9.525 | 37.285 | 25.031 | ||||
| 0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
| 0.500 | 12.700 | 48.719 | 32.708 | ||||
| 8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
| 0.203 | 5.156 | 27.198 | 18.259 | ||||
| 0.219 | 5.563 | 29.286 | 19.661 | ||||
| 0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
| 0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
| 0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
| 0.375 | 9.525 | 49.216 | 33.041 | ||||
| 0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
| 0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
| 10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
| 0.219 | 5.563 | 36.689 | 24.631 | ||||
| 0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
| 0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
| 0.344 | 8.738 | 56.946 | 38.231 | ||||
| 0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
| 0.438 | 11.125 | 71.852 | 48.238 | ||||
| 0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
| 0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
| 12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
| 0.219 | 5.563 | 43.657 | 29.309 | ||||
| 0.250 | 6.350 | 49.713 | 33.375 | ||||
| 0.281 | 7.137 | 55.739 | 37.420 | ||||
| 0.312 | 7.925 | 61.735 | 41.445 | ||||
| 0.375 | 9.525 | 73.824 | 49.562 | ||||
| 0.406 | 10.312 | 79.727 | 53.525 | ||||
| 0.500 | 12.700 | 97.438 | 65.415 | ||||
| 0.562 | 14.275 | 108.966 | 73.154 | ||||
| 14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
| 0.219 | 5.563 | 48.012 | 32.233 | ||||
| 0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
| 0.281 | 7.137 | 61.327 | 41.172 | ||||
| 0.312 | 7.925 | 67.939 | 45.611 | ||||
| 0.375 | 9.525 | STD | 81.281 | 54.568 | |||
| 0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
| 0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
| 0.625 | 15.875 | 132.983 | 89.278 | ||||
| 16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
| 0.219 | 5.563 | 54.980 | 36.910 | ||||
| 0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
| 0.281 | 7.137 | 70.268 | 47.174 | ||||
| 0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
| 0.344 | 8.738 | 85.677 | 57.519 | ||||
| 0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
| 0.438 | 11.125 | 108.433 | 72.797 | ||||
| 0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
| 18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
| 0.250 | 6.350 | 70.593 | 47.393 | ||||
| 0.281 | 7.137 | 79.208 | 53.176 | ||||
| 0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
| 0.375 | 9.525 | STD | 105.144 | 70.588 | |||
| 0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
| 0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
| 0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
| 0.625 | 15.875 | 172.754 | 115.978 | ||||
| 20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
| 0.282 | 7.163 | 88.458 | 59.386 | ||||
| 0.312 | 7.925 | 97.719 | 65.604 | ||||
| 0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
| 0.438 | 11.125 | 136.305 | 91.508 | ||||
| 0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
| 0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
| 0.625 | 15.875 | 192.640 | 129.328 | ||||
| 0.688 | 17.475 | 211.368 | 141.901 | ||||
| 24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
| 0.281 | 7.137 | 106.029 | 71.183 | ||||
| 0.312 | 7.925 | 117.573 | 18.932 | ||||
| 0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
| 0.438 | 11.125 | 164.176 | 110.219 | ||||
| 0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
| 0.625 | 15.875 | 232.410 | 156.028 | ||||
| 0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
| 0.750 | 19.050 | 277.401 | 186.233 | ||||
| 30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
| 0.281 | 7.137 | 132.851 | 89.189 | ||||
| 0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
| 0.375 | 9.525 | STD | 176.731 | 118.648 | |||
| 0.438 | 11.125 | 205.983 | 138.286 | ||||
| 0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
| 0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
| 0.688 | 17.475 | 320.817 | 215.380 | ||||
| 0.750 | 19.050 | 348.988 | 234.293 | ||||
| 36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
| 0.281 | 7.137 | 159.672 | 107.196 | ||||
| 0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
| 0.375 | 9.525 | STD | 215.525 | 142.678 | |||
| 0.438 | 11.125 | 247.790 | 166.353 | ||||
| 0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
| 0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
| 42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
| 0.375 | 9.525 | STD | 248.319 | 166.708 | |||
| 0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
| 0.750 | 19.050 | 492.163 | 330.413 | ||||
| 48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
| 0.438 | 11.125 | 331.404 | 222.487 | ||||
| 0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
| 0.750 | 19.050 | 563.750 | 378.473 | ||||
| 0.875 | 22.225 | 655.969 | 440.383 | ||||
Worldwide Supply of Super Duplex Pipes & Tubes
Russia, Bahrain, Cyprus, Egypt, Iran, Iraq, Israel, Jordan, Kuwait, Lebanon, Oman, Palestine, Qatar, Saudi Arabia, Syria, Turkey, United Arab Emirates (UAE), Yemen, United States of America (USA), Albania, Andorra, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Montenegro, Netherlands, North Macedonia, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom, Vatican City.
